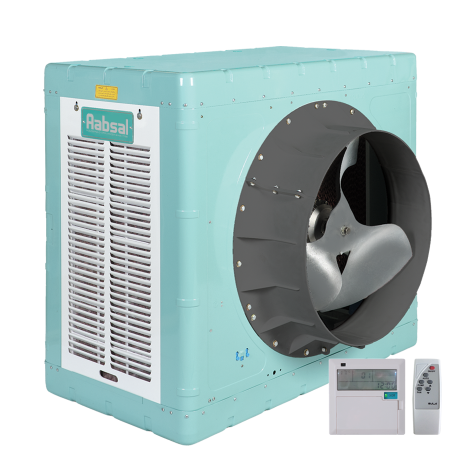

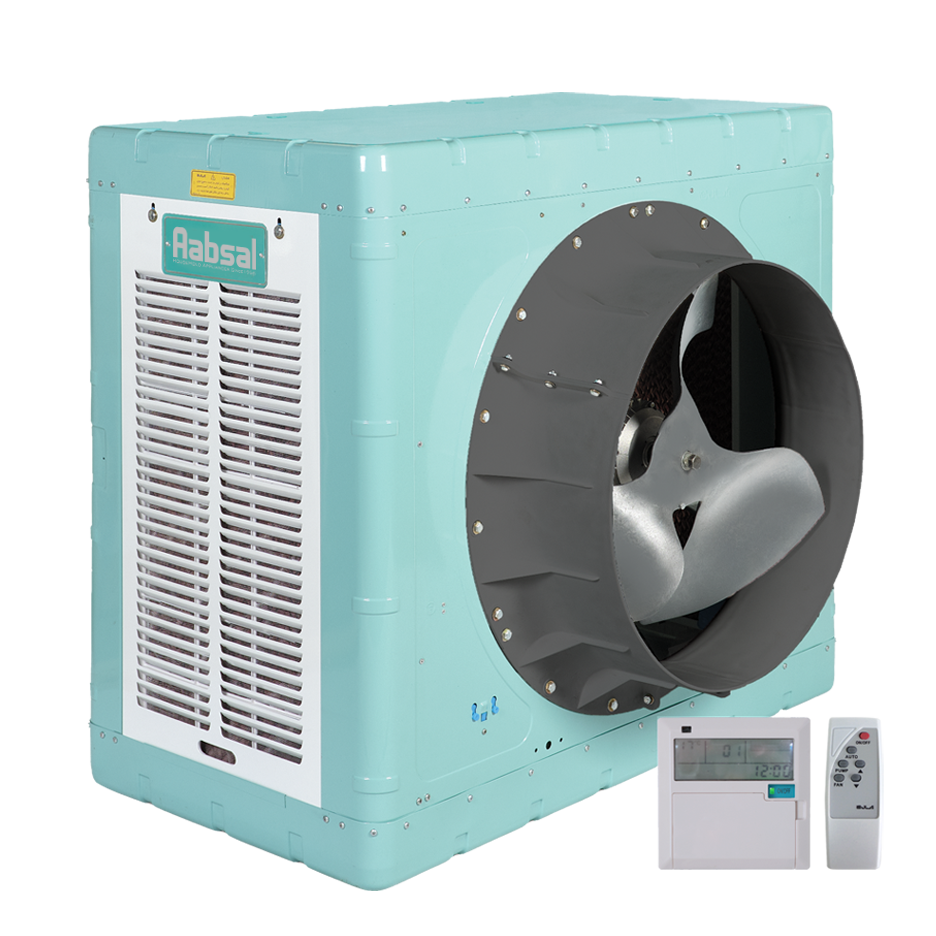

Axial Evaporative Cooler with Cellulose Pads Model AC/AX130

Attributes

  • Dimensions (mm) : 1140-1042-625 (Length-Height-Depth)
  • Weight (kg) : 67.7
  • Air deivery (cfm-M3/h) : 7650-13000
Available

Axial Evaporative Cooler with Cellulose Pads Model AC/AX130

Axial Evaporative Cooler with Cellulose Pads
Recommended products
Rooftop Evaporative Cooler Rooftop Evaporative Cooler
Model AC70
More Information
Description

  • Very good ventilation and cooling efficiency compared to the Evaporative Air Cooler
  • Resistant to voltage fluctuations without disturbing the operation of the Air Cooler
  • Equipped with inverter
  • Having twelve rotation speeds of motor adjustable with the selector or remote control
  • Timer to set the on/off time of the air cooler
  • Equipped with smart electronic board with safty electrical circuit breaker
  • Air filters: Each of the cellulose pads is equipped with a separate and washable air filter to prevent the entry of dust and insects

Product Overview

IRAN CODE

GTIN CODE

PRODUCT - ID

MODEL
1151120083430046 6260834301429 2901201000517 AC/AX130



Technical Specifications

Specifications

  • Dimensions (mm)
    1140-1042-625 (Length-Height-Depth)
  • Weight (kg)
    67.7
  • Air deivery (cfm-M3/h)
    7650-13000
  • Power usage (w)
    1100
  • Water consumption in 35°C & 20% relative humidity (lit/h)
    65

Motor Specification

  • Power
    750W
  • Speed
    1410

Pump Specification

  • Power (HP)
    1/60
  • Phase
    1
  • Frequency (Hz)
    50
