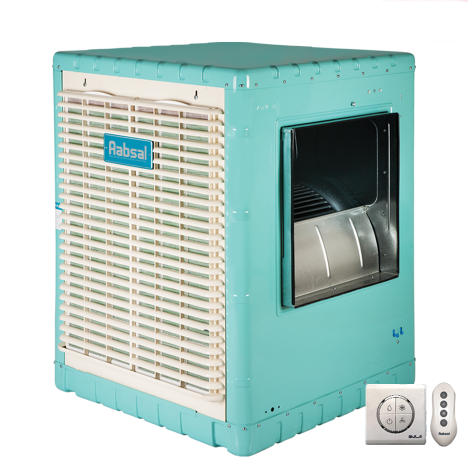

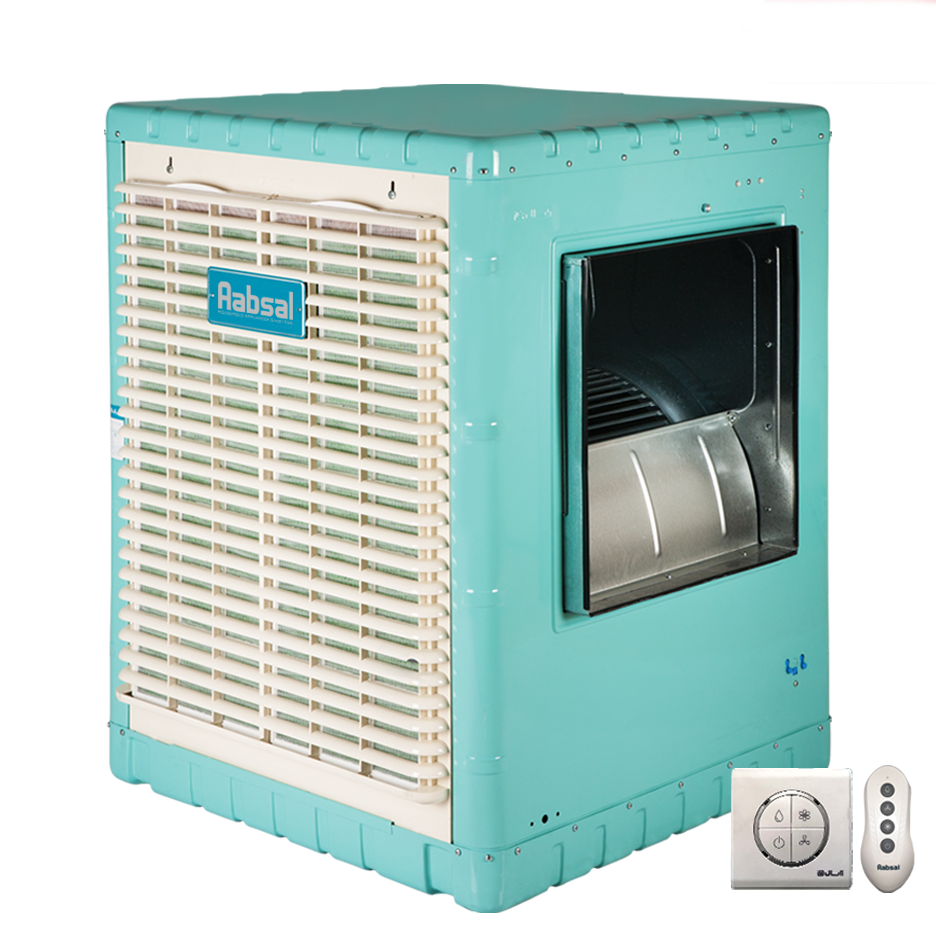

Rooftop Evaporative Cooler with Cellulose Pads Model AC/CP75R

Attributes

  • Energy Efficiency : D
  • Dimensions (mm) : 961.5-1150-963 (Length-Height-Depth)
  • Weight (kg) : 82.5
Available

Rooftop Evaporative Cooler with Cellulose Pads Model AC/CP75R

Rooftop Evaporative Cooler with Cellulose Pads
Recommended products
Rooftop Evaporative Cooler Rooftop Evaporative Cooler
Model AC70
More Information
Description

  • Equipped with Electronic Switch and Remote Control

Product Overview

IRAN CODE

GTIN CODE

PRODUCT-ID

MODEL
1151120083430051 6260834301481 2901201000500 AC/CP75R



Technical Specifications

Specifications

  • Energy Efficiency
    D
  • Dimensions (mm)
    961.5-1150-963 (Length-Height-Depth)
  • Weight (kg)
    82.5
  • Air deivery (cfm-M3/h)
    4900-8350
  • Power usage (w)
    720
  • Cooling output in m3 under normal operation circumstances
    380
  • Water consumption in 35°C & 20% relative humidity (lit/h)
    45

Motor Specification

  • Power
    3/4 HP
  • Speed
    2
  • Phase
    1

Pump Specification

  • Power (HP)
    1/60
  • Phase
    1
  • Frequency (Hz)
    50
Catalogue
