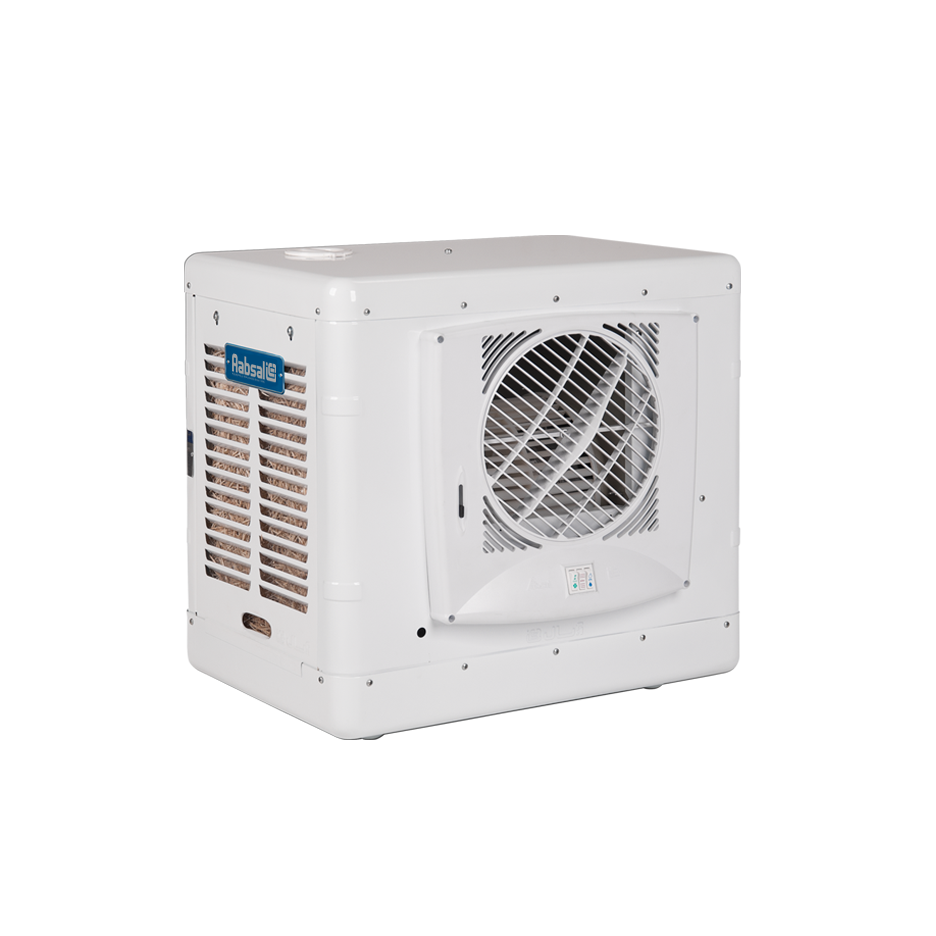

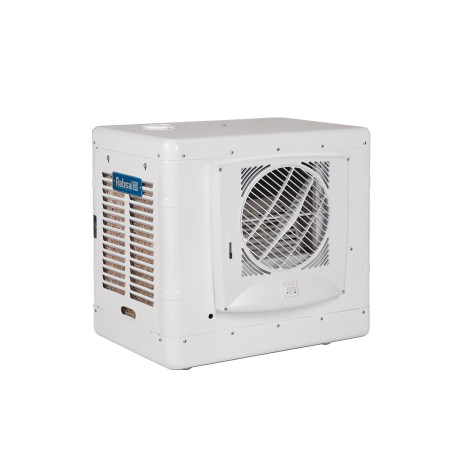

Mini Evaporative Cooler Model AC31D

Attributes

  • Dimensions (mm) : 600-585-420 (Length-Height-Depth)
  • Weight (kg) : 21
  • Air deivery (cfm-M3/h) : 900-1500
Available

Mini Evaporative Cooler Model AC31D

Mini Evaporative Cooler
Recommended products
Rooftop Evaporative Cooler Rooftop Evaporative Cooler
Model AC70
More Information
Description

  • Small and portable
  • Can be either placed inside or outside of the room, next to a window
  • Adjustable rotary air grill changes the air flow
  • Water tank can be filled manually or could be attached to a water pipe
  • Water level indicator
  • Integrated propeller
  • Frame made of galvanised steel sheet
  • Optional mobile base available to make the cooler portable

Product Overview

IRAN CODE

GTIN CODE

PRODUCT - ID

MODEL
1151120083430010 6260834300095 2901201000432 AC31D



Technical Specifications

Specifications

  • Dimensions (mm)
    600-585-420 (Length-Height-Depth)
  • Weight (kg)
    21
  • Air deivery (cfm-M3/h)
    900-1500
  • Power usage (w)
    200
  • Cooling output in m3 under normal operation circumstances
    100
  • Water consumption in 35°C & 20% relative humidity (lit/h)
    9

Motor Specification

  • Power
    1/8 HP
  • Speed
    2
  • Phase
    1

Pump Specification

  • Power (HP)
    1/60
  • Phase
    1
  • Frequency (Hz)
    50
