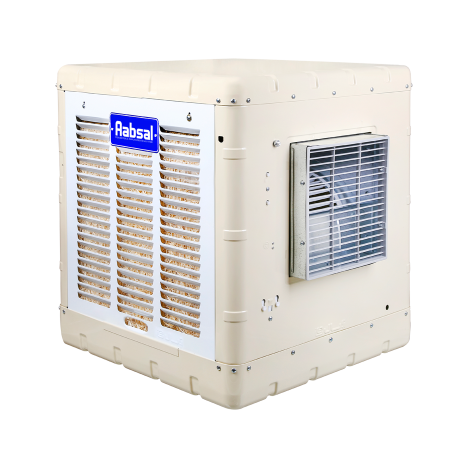

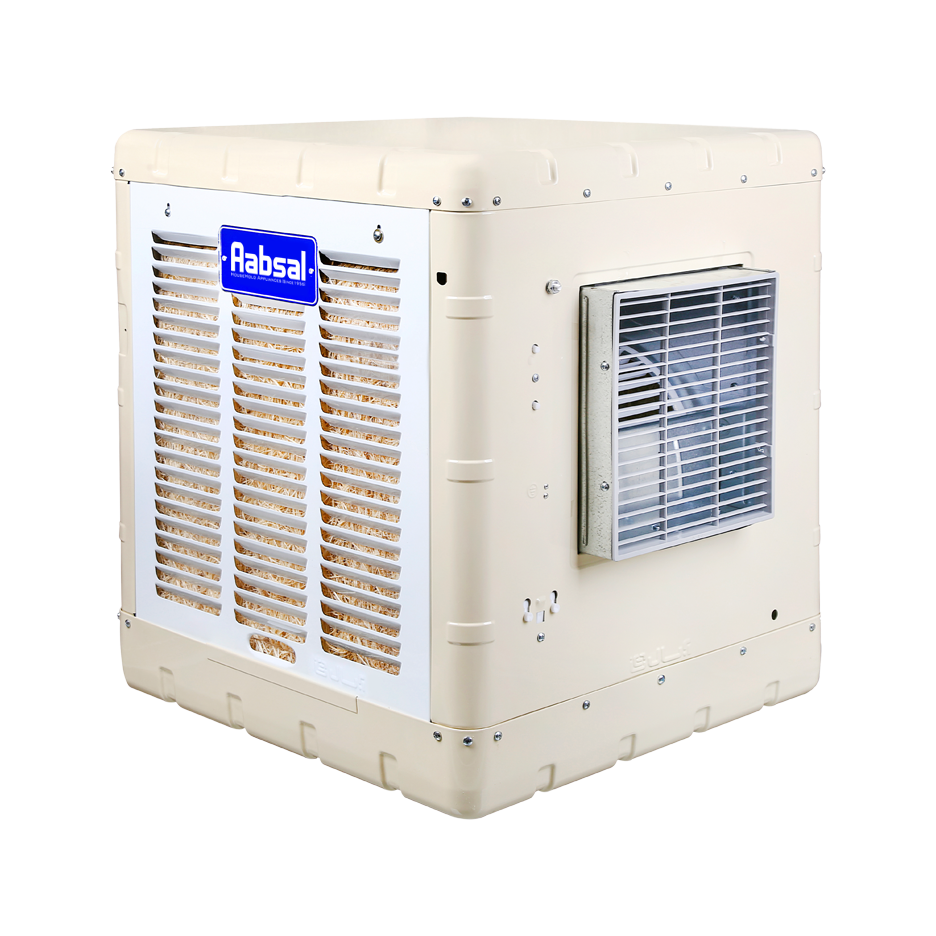

Mini Evaporative Cooler Model AC33B

Attributes

  • Dimensions (mm) : 700-600-600 (Length-Height-Depth)
  • Weight (kg) : 28/5
  • Air deivery (cfm-M3/h) : 1650-970
Available

Mini Evaporative Cooler Model AC33B

Mini Evaporative Cooler
Recommended products
Rooftop Evaporative Cooler Rooftop Evaporative Cooler
Model AC70
More Information
Description

  • Small and portable
  • Can be either placed inside or outside of the room, next to a window
  • Water tank can be filled manually or could be attached to a water pipe
  • Water level indicator
  • Integrated propeller
  • Frame made of galvanised steel sheet

Product Overview

Mini Evaporative Cooler

Technical Specifications

Specifications

  • Dimensions (mm)
    700-600-600 (Length-Height-Depth)
  • Weight (kg)
    28/5
  • Air deivery (cfm-M3/h)
    1650-970
  • Power usage (w)
    320
  • Cooling output in m3 under normal operation circumstances
    110
  • Water consumption in 35°C & 20% relative humidity (lit/h)
    11

Motor Specification

  • Power
    1/5
  • Speed
    320
  • Phase
    1

Pump Specification

  • Power (HP)
    1/60
  • Phase
    1
  • Frequency (Hz)
    50
